Stand magnifier with Glass Reticle C- 6803 series
(6803-01,C803-02.C6803-03,C-6803-04,C-6803-05,C6803-06,C-6803-07,C6803-08)
6803 Series magnifier with different glass reticles. This magnifier can be Observation engineering drawings, architectural drawings, product design drawings, drawings, etc. Total 8 kinds of reticle.
| Item No |
Lens Size(mm) |
Magnification |
Diopter |
Height (mm) |
Feature |
| C-6803-01 |
30 |
8X |
28 |
47 |
Glass reticle 01 |
| C6803-02 |
30 |
8X |
28 |
47 |
For young 02 |
| C6803-03 |
30 |
8X |
28 |
47 |
Glass reticle 03 |
| C6803-04 |
30 |
8X |
28 |
47 |
Glass reticle 04 |
| C6803-05 |
30 |
8X |
28 |
47 |
Glass reticle 05 |
| C6803-06 |
30 |
8X |
28 |
47 |
Glass reticle 06 |
| C6803-07 |
30 |
8X |
28 |
47 |
Glass reticle 07 |
| C6803-08 |
30 |
8X |
28 |
47 |
Glass reticle 08 |
NO.1
Multifunctional reticle is mainly used for an angle, radius, diameter, width, etc. that is measured in inches;
NO.2
protractor scale is from 0°～360° in 1° increments;
NO.3
thread reticle, nine kinds of screw threads: 25, 16, 14, 10, 12, 9, 8, 7, 4;
NO.4
universal degrees plate reticle is mainly used for the measurement of angle, radius, diameter, width, etc. in millimeters;
NO.5
crosshair scale reticle, both metric and inch scales are on both sides of the crosshair scale respectively. Metric: 0.5mm divisions; Inch: 1/32", 1/64" divisions;
NO.6
crosshairs scale reticle, both metric and inch scales are on both sides of the crosshairs scale respectively. Metric: 0.1mm divisions; Inch: 1/64" divisions;
NO.7
metric scale reticle, 30mm long in total, 0.1mm divisions;

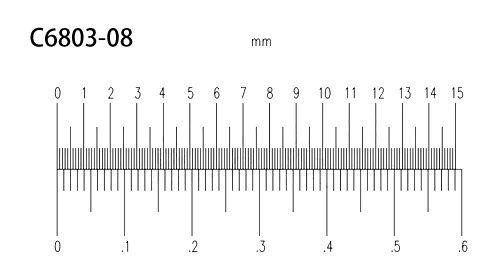

NO.8
metric and inch scale reticle, Metric: 0.1mm(Min) divisions, 15mm long in total; Inch: 0.01 inch(Max) divisions, 0.6 inch long in total.
